White CONCRETE
DIAMOND BLADE MASTERPAC offers a wide range of blades for aspects of flat saw requirements.A full range of diamond blade is available and supplied on all relevant products.Details on request.
DTAMOND BLADE
MASTERPAC offers a wide range of blades for aspects of flat saw requirements.
A full range of diamond blade is available and supplied on all relevant products.
Details on request.

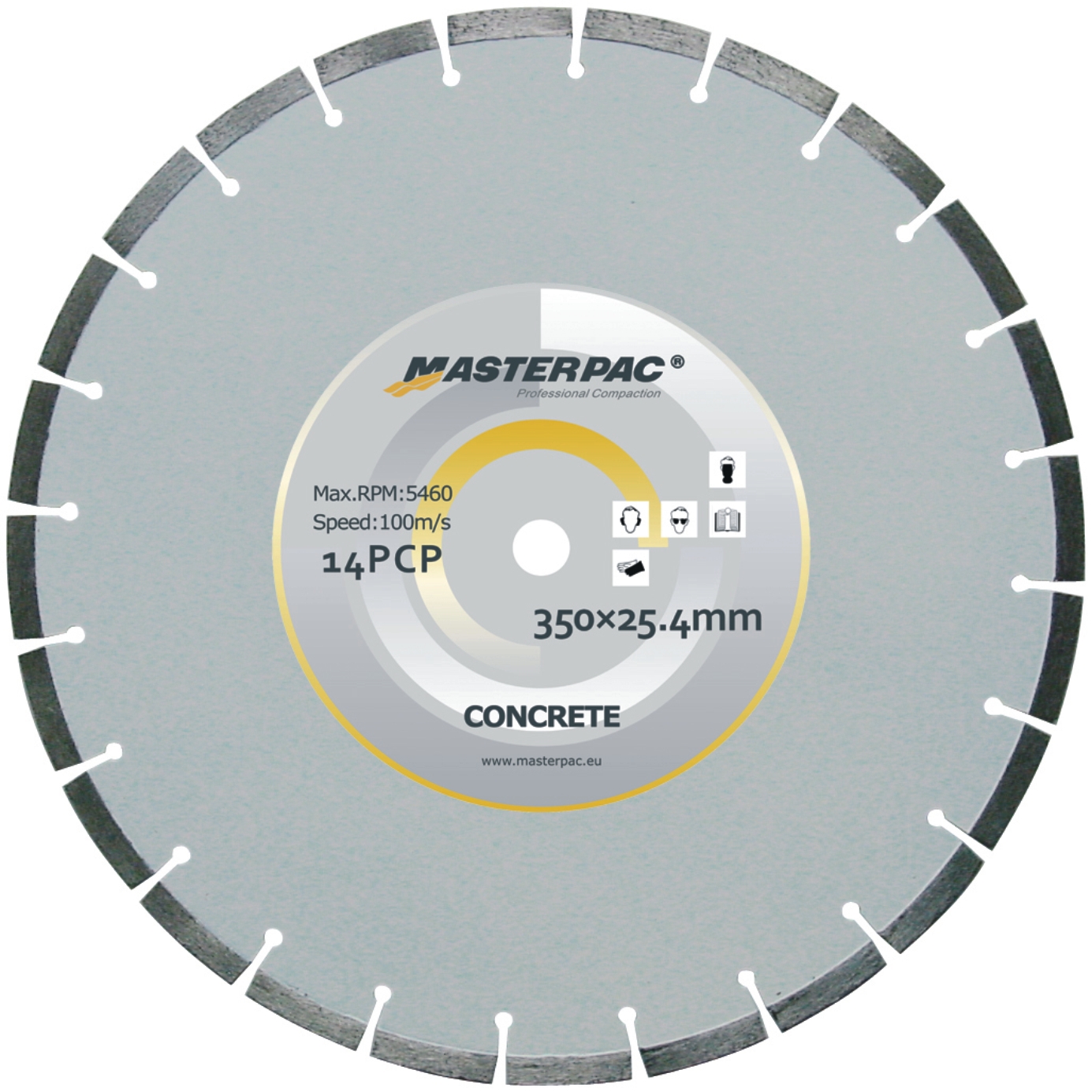

Laser Welded Diamond Saw Blade For Flat Sawing Equipment.
| CONCRETE | SIZE | Part No. | Segment Dimension | Segment Number |
|
Hard non-abrasive material such as concrete, Very hard concrete, class A engineering bricks, 65-100 Newton clay pavers, hard flint aggregate concretes. Reinforced concrete lintels. curbs and hard paving slabs. Hard clayroof tiles, hard slate. |
300MM 12" | 12PCP | 40x3.0x10 | 20 |
| 350MM 14" | 14PCP | 40x3.2x10 | 24 | |
| 400MM 16" | 16PCP | 40x3.4x10 | 28 | |
| 450MM 18" | 18PCP | 40x3.6x10 | 32 | |
| 500MM 20" | 20PCP | 40x3.6x10 | 36 | |
| 600MM 24" | 24PCP | 40x4.2x10 | 40 | |
| 700MM 28" | 28PCP | 40x4.5x10 | 48 | |
| 800MM 32" | 32PCP | 40x4.5x10 | 54 | |
| 900MM 36" | 36PCP | 40x4.8x10 | 60 |
* We reserve the right to improve or withdraw the specification or product without prior notice.
