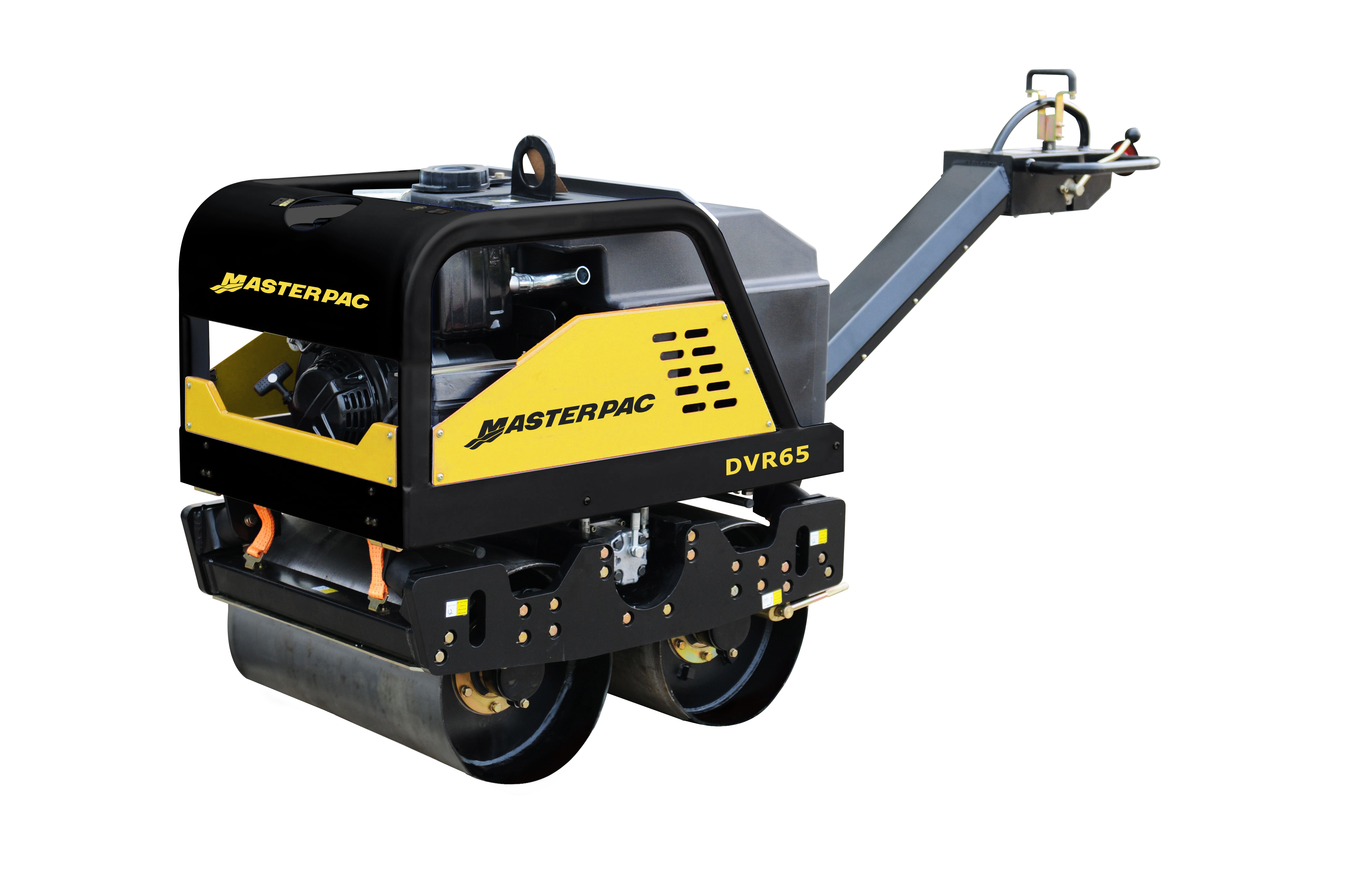

DVRS65

Semi Hydraulic Double Drum Vibratory Roller. The DVRS65 walk-behind roller: More efficient. Less time-consuming. Simply practical all round.

Whenever the DVRS65 is in action, you can be sure the work is simpler, safer and faster. The hand-guided vibratory roller DVRS65 for soil and asphalt compaction. Construction and maintenance of pavements, shoulders, forestry and estate roads. Masterpac Light equipment for soil and asphalt compaction and we support OEM/ODM customization.

  • Engine Type: Lombardini/Honda/Kipor/Kubota
  • Power kw(hp): 4.6(6.3)-8.7(11.8)
  • Weight kg(lb): 625(1378)-650(1433)
  • Drum Diameter mm(in): 650×ф402(25.6×ф16)
  • Centrifugal Force kN: 11.3
  • Static Linear Force N/cm: 51
  • Vibration Frequency vpm(Hz): 3300(55)
  • Travel Speed m/min(ft/min): 0-3.6(2-2.4)
  • Water tank capacity L(US gal): 40(10.6)

Walk-behind Double Drum Roller DVRS65 Series

DVRS65 is a vibratory roller with hydraulic-controlled movement, ideal for applications of asphalt soil and granular material compaction. Its compact design makes it perfect in the jobs on curbs sides and in confined areas.

Features

  • Deadman control lever offers reversing protection
  • Mechanical parking brake

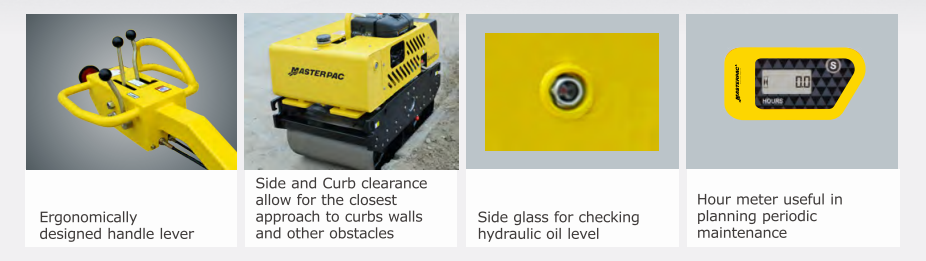

  • Ergonomically designed handle lever.
  • Side and Curb clearance allow for the closest approach to curbs walls and other obstacles.
  • Dual smooth drums with beveled edges eliminate marks on ground and asphalt.
  • Low maintenance and easy accessible diesel engine.
  • 40L corrosion-free water tank.
  • Two scraper bars ensure a clean drum.
  • High-quality hydraulic pumps and motors.

Working Size(mm)

MASTERPAC

DVRS65 Series  (MM)

A=2378 B=696 C =1130



Model Uints DVRS65K DVRS65H
Operating weight, max kg (lb) 696 (1534) 671 (1479)
Operating weight, CECE kg (lb) 674 (1485) 647 (1426)
Net weight kg (lb) 652 (1437) 625 (1377)
Static liner load, CECE kg/cm 5
Drum size, width x diameter mm (in) 650 x 402 ( 25.6 x 16 )
Centrifugal force kN 11.3
Static linear force N / cm 51
Frequency vpm (Hz) 55 (3300)
Amplitude mm (in) 0.50 ( 0.02)
Engery -  Diesel Petrol
Engine manufacturer and model - Kubota E75-NB3 Honda GX 390
Engine power kW (HP) 4.6 (6.3) 8.7 (11.8)

Cooling of engine

 - Water Air
Starting - Key Recoil
Vibration - Clutch & Belt
Travel speed range km / h (mi / h) 0-3.6 ( 0-2.2)
Gradability % (degree) 35 (20)
Water tank capacity L (US gal) 40 (10.6)
Type of sprinkler system - Gravity
Dimensions ( L x W x H ) mm (in) 2378 x 696 x 1130 ( 94 x 27 x 44 )

* We reserve the right to improve or withdraw the specification or product without prior notice.
