DVR65

Professional soil compaction forms the basis for everything that follows in the construction industry. Stability means quality, and quality is crucial - right from the start. The DVR65 is your reliable partner for a wide range of applications. The switchable vibration system adapts flexibly to various surfaces, base layers and thin asphalt wearing courses.

MASTERPAC's double vibratory system ensures smooth and consistent operation for an even surface finish. The high centrifugal force and working speed ensure optimal compaction and surface coverage.

Fully hydraulic with built-in-oil cooler reduces the machine down time, increase reliability and reduces maintenance cost.

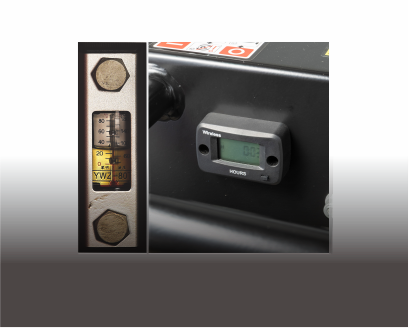

Hour meter held in planning periodic maintenance.



  • Engine Type: Yanmr / Hatz / Kohler
  • Power kw(hp): 7.5(10.2)/7.3(9.9)/7.4(7.4)
  • Weight kg(lb): 718(1583)/721(1590)/697(1533)
  • Drum Diameter mm(in): 650×ф404(25.6×ф16)
  • Centrifugal Force kN: 21
  • Static Linear Force N/cm: 54
  • Vibration Frequency vpm(Hz): 3300(55)
  • Travel Speed m/min(ft/min): 0-3.6(0-2.2) km(ml)/h
  • Water tank capacity L(US gal): 65(17)

DOUBLE DRUM VIBRATORY ROLLER DVR65 SERTES

Masterpac walk behind rollers are designed rugged and suitable for a wide range of applications in the construction industry. The rollers deliver excellent compaction to all types of gravel and asphalt surfaces for large and confined areas.

Features

MASTERPAC DVR65, different from most chain or belt driven roller on the market, comes with a fully hydraulic-drive system that consists of hydraulic pump and motors not only on vibration but also movement, eliminating the need for regular periodic adjustments and changes while providing variable working speed.

  • DEADMAN CONTROL lever offers REVERSING PROTECTION.
  • Mechanical parking brake.
  • Multi position handle for operator comfort and simplified transport.

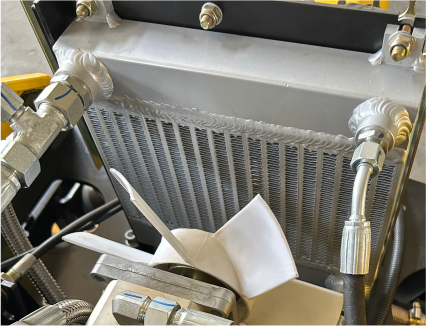

  • Built-in oil cooler will increase the productivity of machine.
  • Ergonomically designed handle lever is conveniently positioned to ensure speed and vibration.
  • Anti vibration controls ensure non-fatiguing and low HAV(Hand/Arm Vibration) for the operator.
  • The SIDE and CURB CLEARaNcE allows for the closest possible approach to pavements curbs walls and other obstacles.

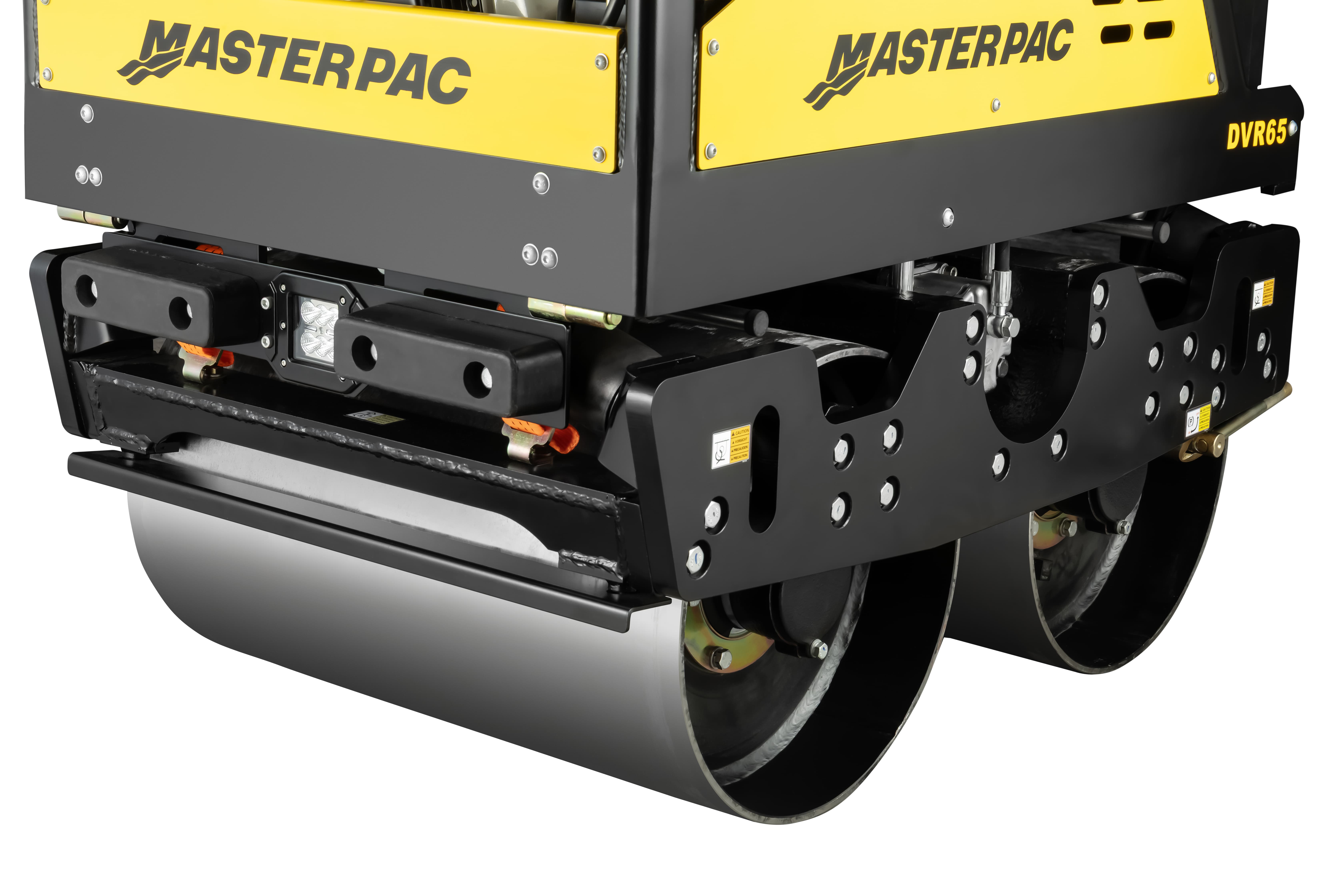

  • Dual smooth drums with beveled edge eliminates mark on the ground and asphalt.
  • Easy access to front mounted Diesel engine 65 Liter, corrosion-free water tank mounted at the rear of roller reduces sound and keeps dust to a minimum.
  • Two scraper bars on each drum ensure a clean drum when working on asphalt.
  • Minimum overhang offers suitable side and curb clearance.

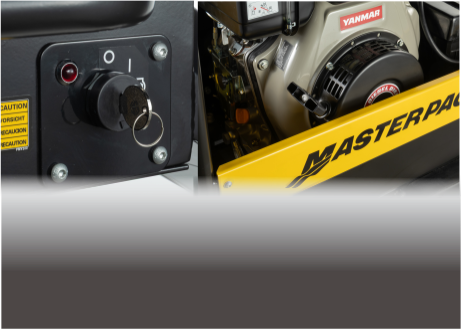

  • Unique CLUTCH/PUMP drive system provides easy cold weather starting and allows for no-load starting of engine.



Model Uints DVR65Y DVR65A DVR65L
Operating weight, max kg (lb) 753(1660) 756(1666) 756(1666)
Operating weight, CECE kg (lb) 732(1613) 735(1620) 735(1620)
Net weight kg (lb) 697(1536) 700(1543) 700(1543)
Static liner load, CECE kg/cm 5.6
Drum size, width x diameter mm (in) 650 x 404 (25.6 x 16)
Centrifugal force kN 21
Static linear force N / cm 54
Frequency vpm (Hz) 3300 (55)
Amplitude mm (in) 0.50 (0.02)
Engery - Diesel
Engine manufacturer and model - Yanmar L100 Hatz 1B 40 Kohler KD 15-440
Engine power kW (HP) 7.4 (10.0) 7.3 (9.8) 7.5 (10.0)

Cooling of engine

 - Air
Starting - Recoil & Key
Drive & Vibration - Fully Hydraulic
Travel speed range km / h (mi / h) 0-3.6 ( 0-2.2)
Gradability % (degree) 35 (20)
Water tank capacity L (US gal) 65 (17)
Type of sprinkler system - Gravity
Dimensions ( L x W x H ) mm (in) 2416 x 712 x 1890 ( 95 x 28 x 74 )

* We reserve the right to improve or withdraw the specification or product without prior notice.
