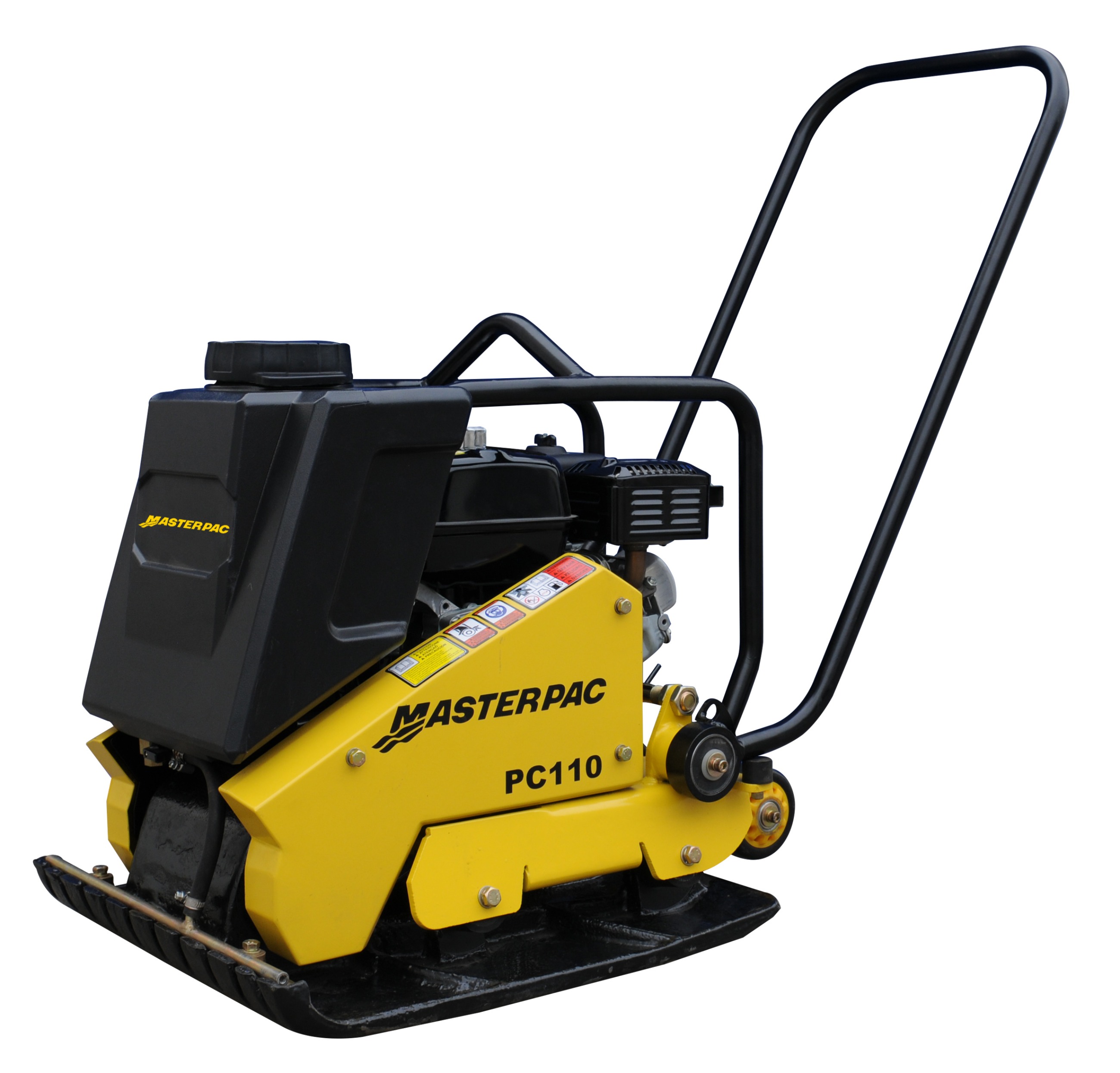

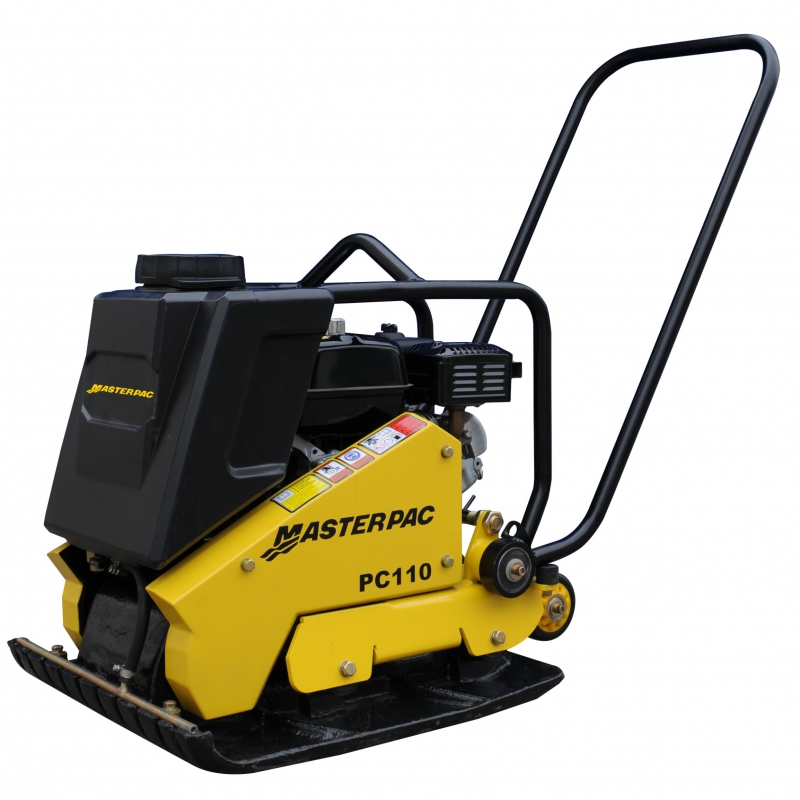

PC110

Masterpac's PC110 Series forward plate compactors are ideal for all general applications – curbs, gutters, around tanks, forms, columns, footings, landscaping, paving blocks, drainage ditches and light to medium road repair work. OEM/ODM plate compactor manufacturers & suppliers, wholesale custom these compactors, we are the only choice. MASTERPAC, high-end manufacturing leader.

  • Model:: PC110H/PCV110H
  • Engine Type:: Honda GX160
  • Power kw(hp):: 3.6(4.9)
  • Weight kg(lb):: 102(225)
  • Centrifugal Force kN:: 20
  • Vibration Frequency vpm(Hz):: 95
  • Travel Speed m/min(ft/min):: 25(82)
  • Plate Size L×W cm(in):: 57×50(22×20)

FORWARD PLATE COMPACTOR - PC70/PC90/PC110 SERIES

Ideal for all general applications- curbs, gutters, around tanks, forms columns, footings, landscaping, paving blocks, drainage ditches, and light to medium road repair work. The MASTERPAC forward, one-direction compactors are available in multiple sizes to handle various sized jobs and compactions specification considerations.

Working Size(mm)

FORWARD PLATE COMPACTOR PC70

Model A B C D
PC70 Series 1010/39.7 910/35.8 531/20.9 360/14.2
PC90 Series 1045/41.1 919/36.2 568/22.4 400/15.7
PC110 Series 1050/41.3 920/36.2 570/22.4 500/19.7


Model

PC70H
PCV70H

PC90H
PCV90H

PC110H
PCV110H

Engine Type Honda GX120 Honda GX160 Honda GX160
Power kw(hp) 2.4(3.3) 3.6(4.9) 3.6(4.9)
Weight kg(lb) 62(137) 85(187) 102(225)
Plate Size L×W cm(in) 50×36(21×14) 57×40(22×16) 57×50(22×20)
Centrifugal Force kN 10 15 20
Vibration Frequency vpm(Hz) 95
Travel Speed m/min(ft/min) 25(82)

* We reserve the right to improve or withdraw the specification or product without prior notice.
