Our submersible pump(flexible shaft pump) is compact with aluminium casting body and can be used with ease even in areas without access to power supply.The high performance pump is designed to offer trouble free operation.

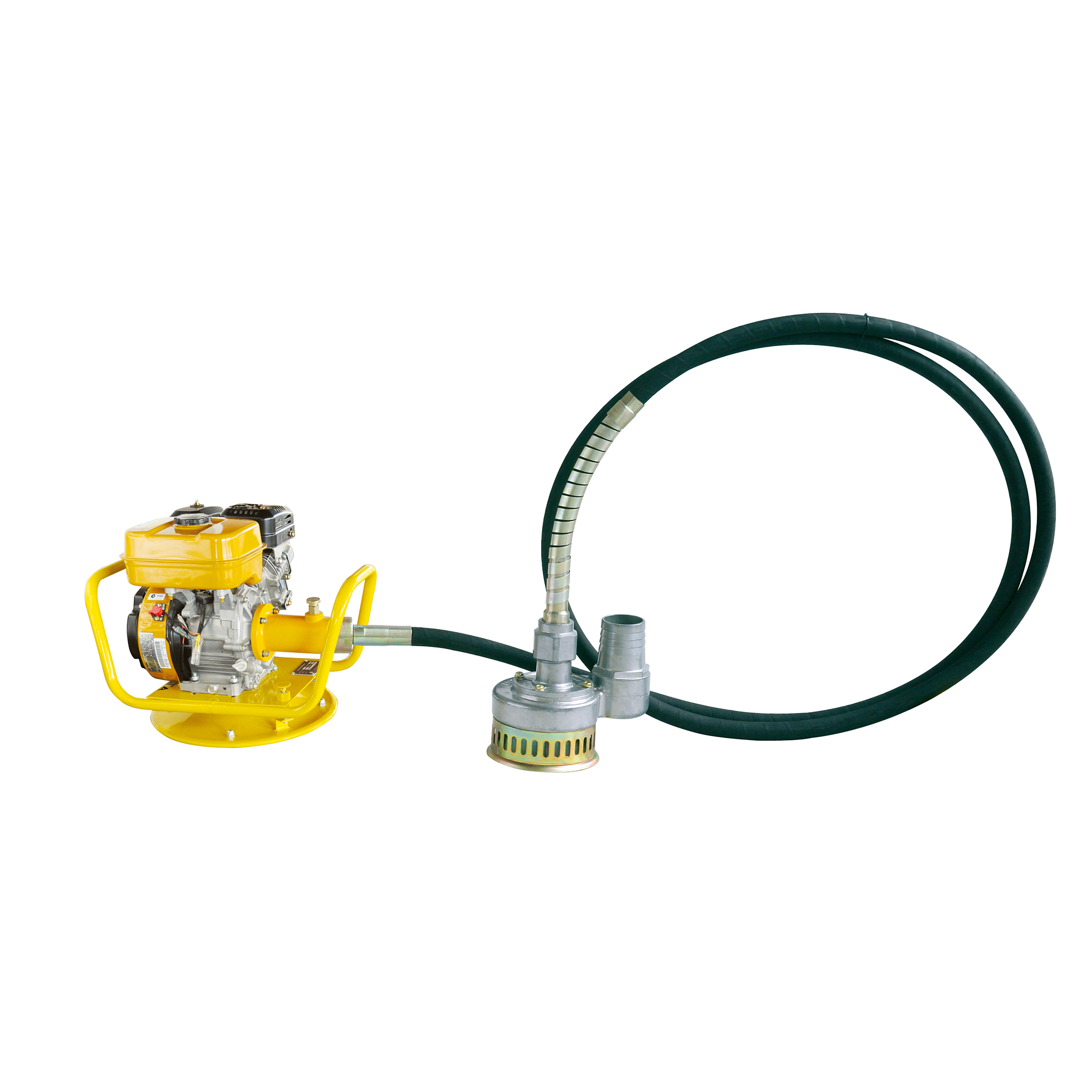

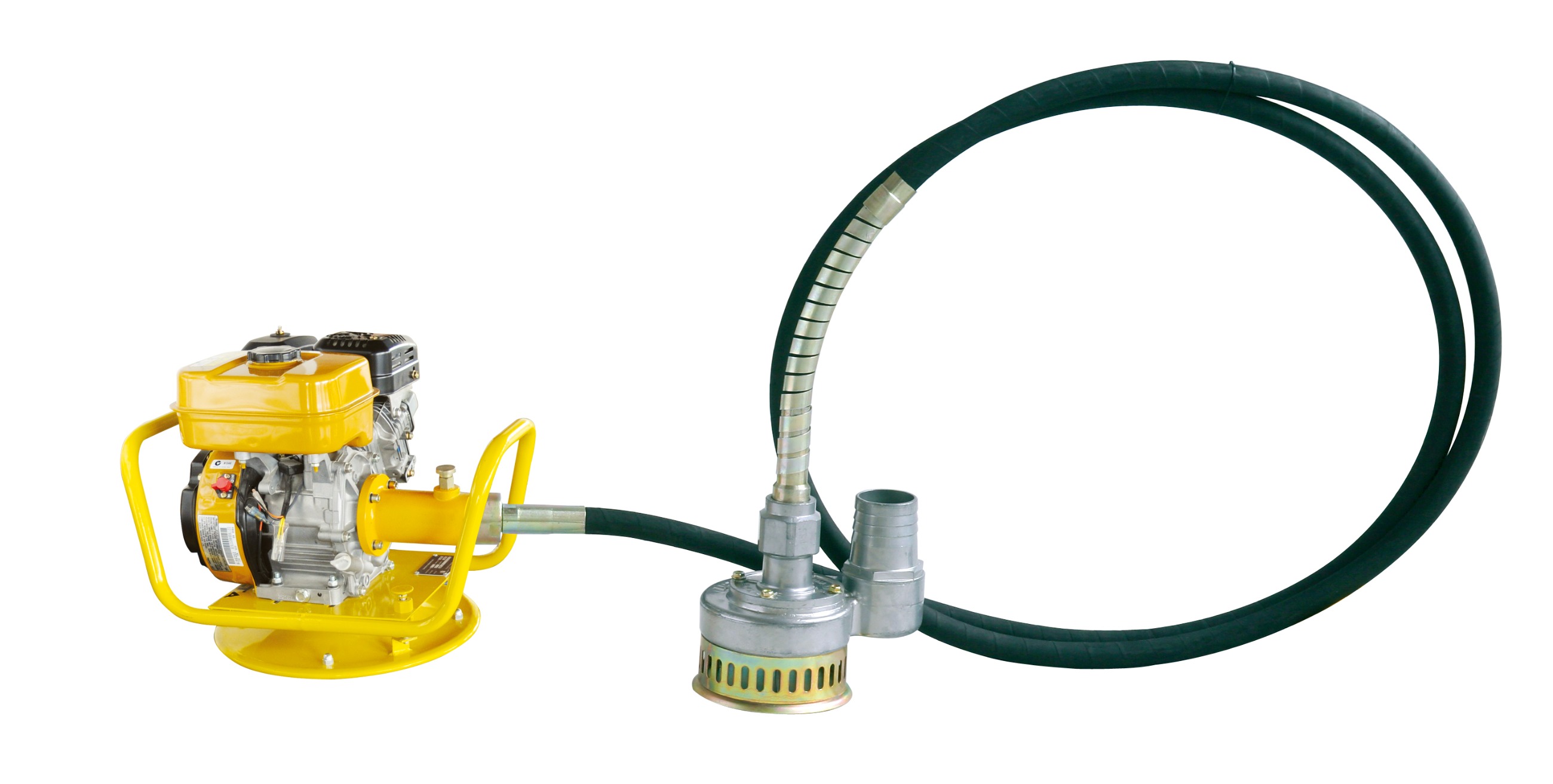

Submersible Pump(Flexible Shaft Pump)
Our pump is compact with aluminium casting body and can be used with ease even in areas without access to power supply.
The high performance pump is designed to offer trouble free operation.
The pump can be driven by the engines through the flexible shaft inserted in the hose, Our pump and vibrator have the same connections, Recommended drive units are our PDR and PDS series.

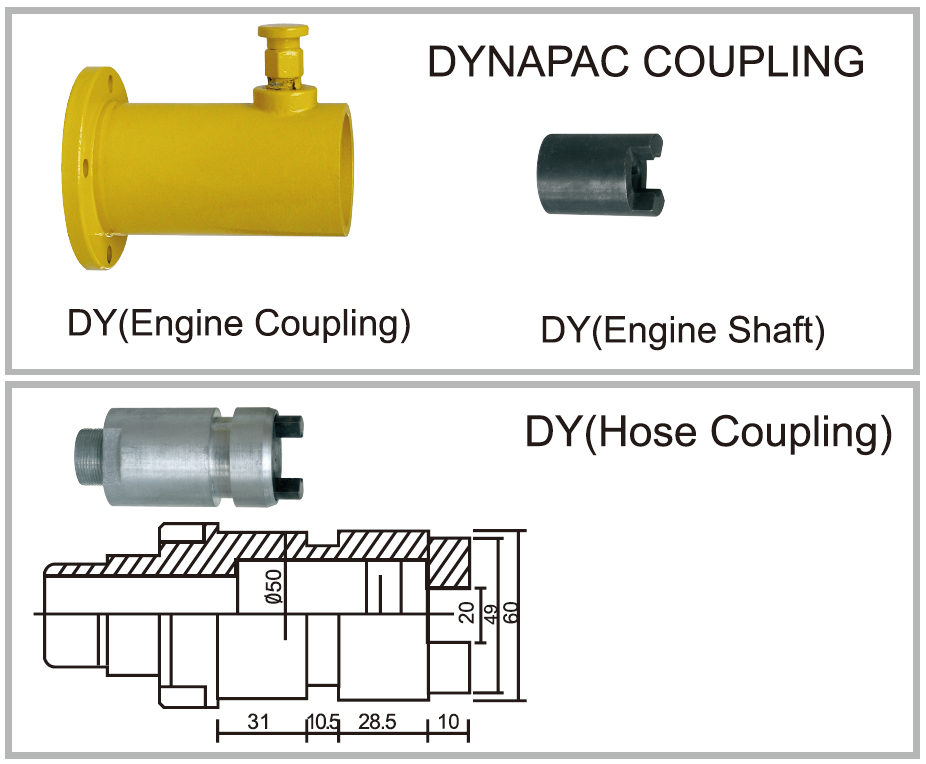

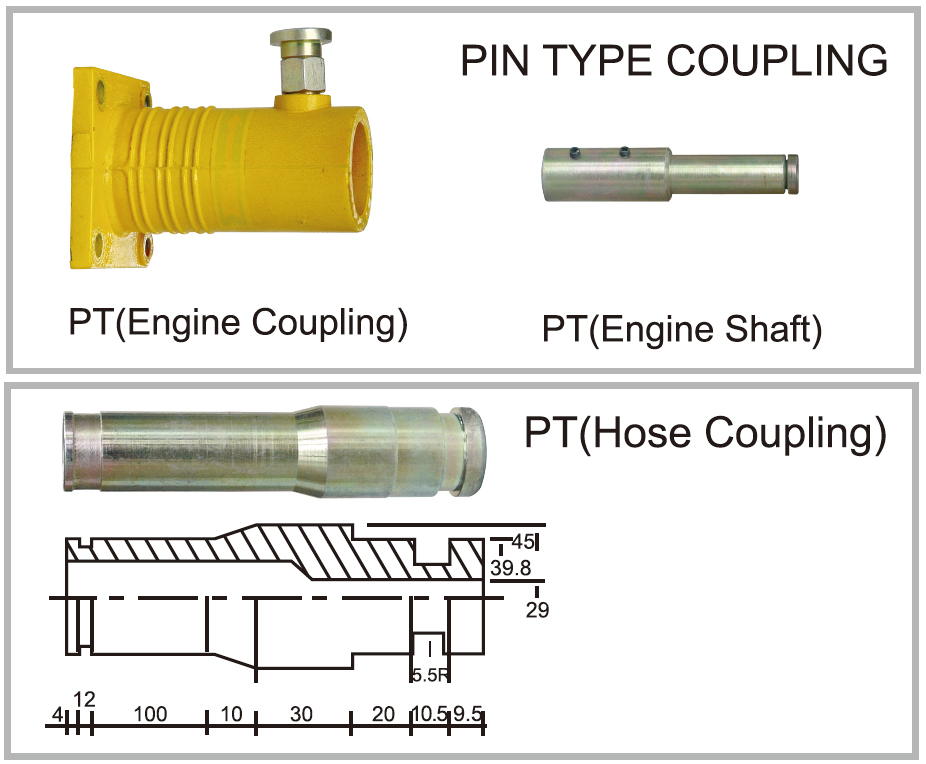

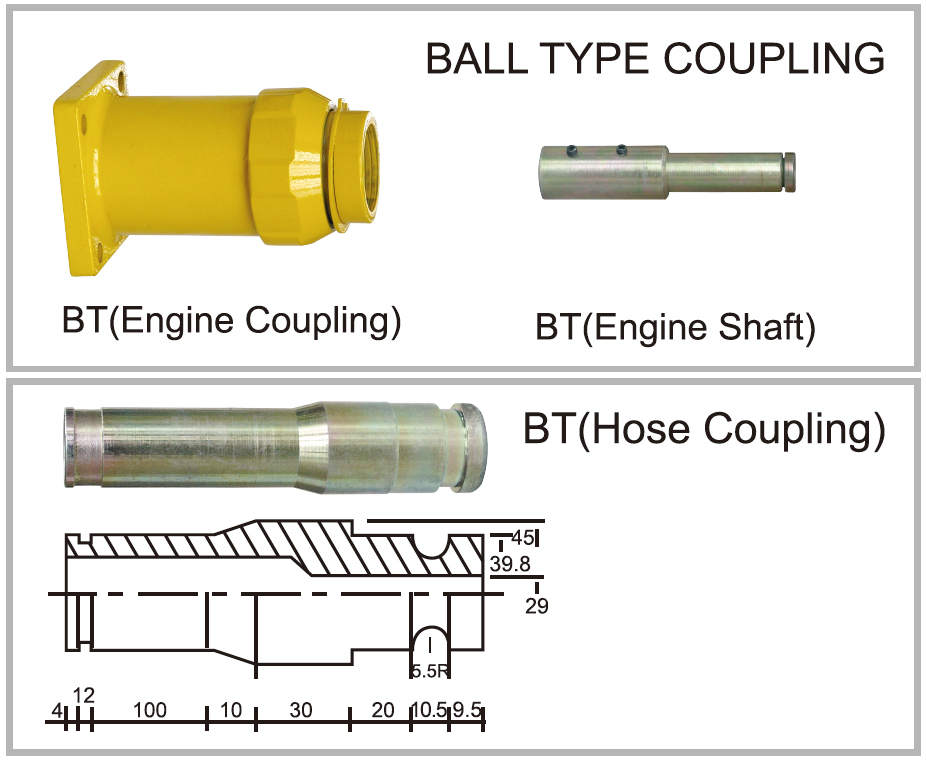

Engine & Vibrator Coupling Unit-Typical Connection

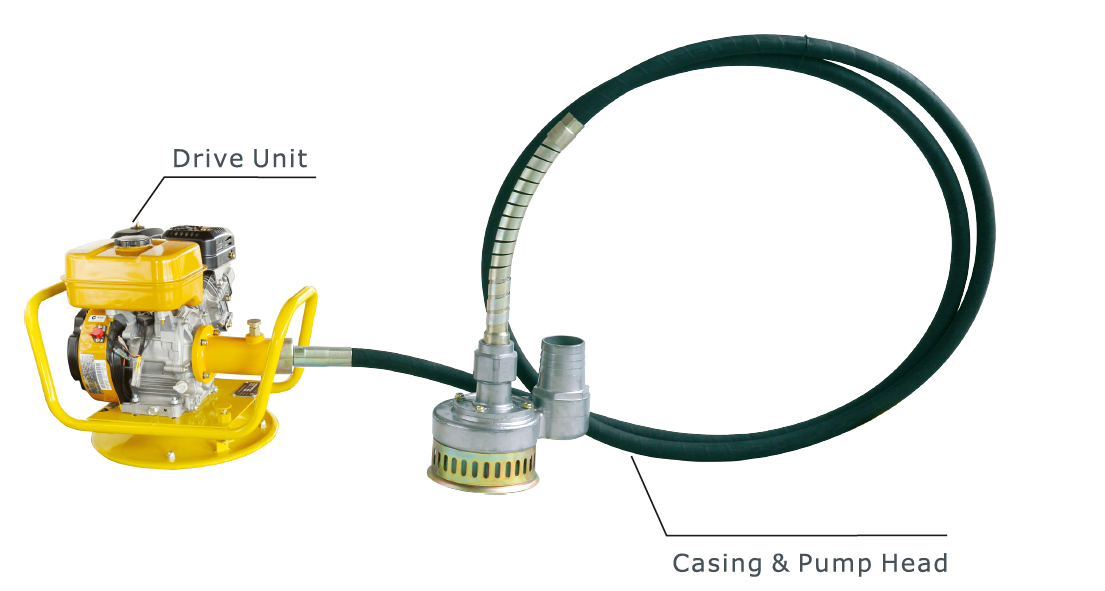

Casing & Pump Head
| Model | PCRH/PDSH | PDRR/PDSR |
| Discharge Dia mm(in) | 50(1.97) | 75(2.95) |
| Max. lift m(ft) | 15(49.2) | 18(59) |
| Max. Capacity L(US Gal)/min | 1000(264) | 1300(343) |
| Revolution rpm | 3000 | 3000 |
| Length of Hose m(ft) | *5(*16.4) | *5(*16.4) |
| Weight w/o Engine kg(lb) | 21(46) | 22(49) |
* We reserve the right to improve or withdraw the specification or product without prior notice.
