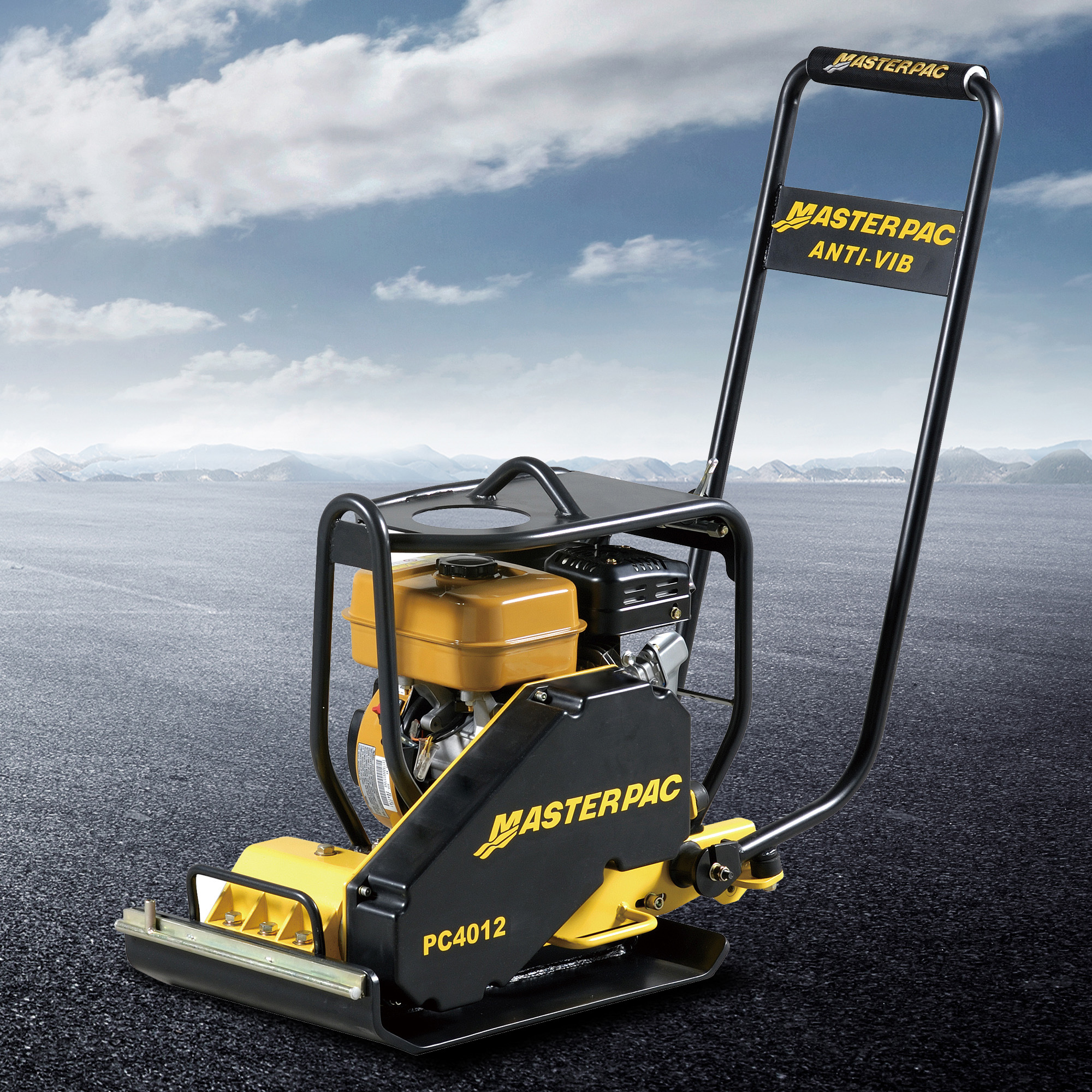

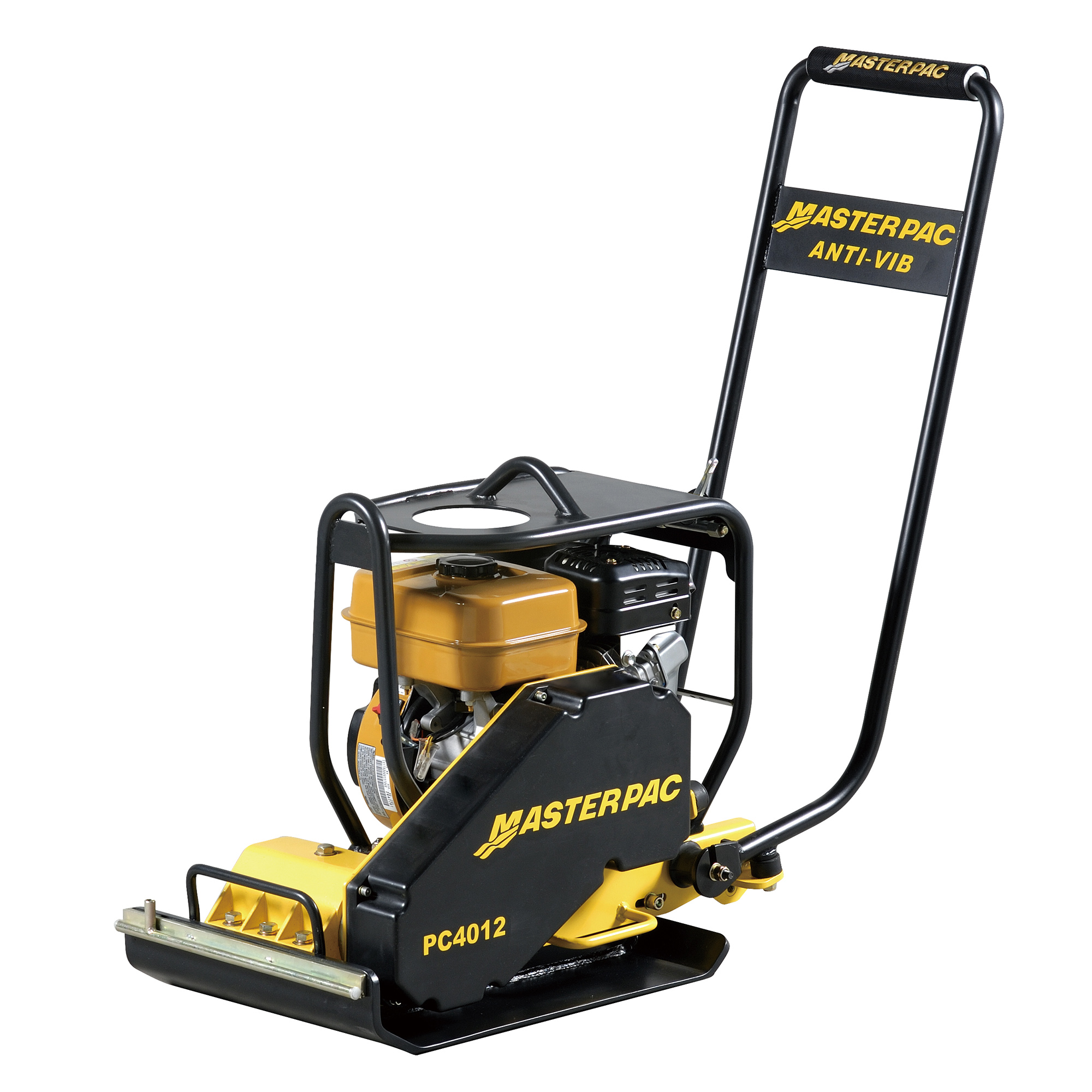

PC4012

Masterpac Single direction vibratory plates: Quality and performance on all small site operations. These are the right plates for the specialist user who needs to meet the highest compaction demands every time.

  • Model:: PC4012H/PC4012R/PC4012L/PC4012A
  • Power kw(hp):: 2.9(4.0)-3.6(4.9)
  • Weight kg(lb):: 85(187)-98(216)
  • Centrifugal Force kN:: 12
  • Vibration Frequency vpm(Hz):: 5400(90)
  • Travel Speed m/min(ft/min):: 22(72)
  • Plate Size L×W cm(in):: 57×40(22×16)

Masterpac PC3008/PC3610/PC4515/PC5018/PC5021 Series Forward Plate Compactors

Masterpac's PC Series forward plate compactors are ideal for all general applications – curbs, gutters, around tanks, forms, columns, footings, landscaping, paving blocks, drainage ditches and light to medium road repair work. The PC Series offers a 12-in. plate (PC3008), a 14-in. plate (PC3610), a 16-in. plate (PC4012), a 22-in. plate (PC4515/PC5018/PC5021).

Features

  • Solid,high strength steel base plate with curved edges provides top performance.
  • Cast Iron wear resistant lubricated vibrator assembly.
  • Robust design sealed belt cover for clutch and belt protection.
  • Anti vibration removable flip over handle for easy transportation.
  • Solid engine frame with lifting eye protects engine against dirt and damage makes and for easy transportation.
  • Sturdy protected throttle lever.
  • Optional transport wheel for easy transportation around sites.

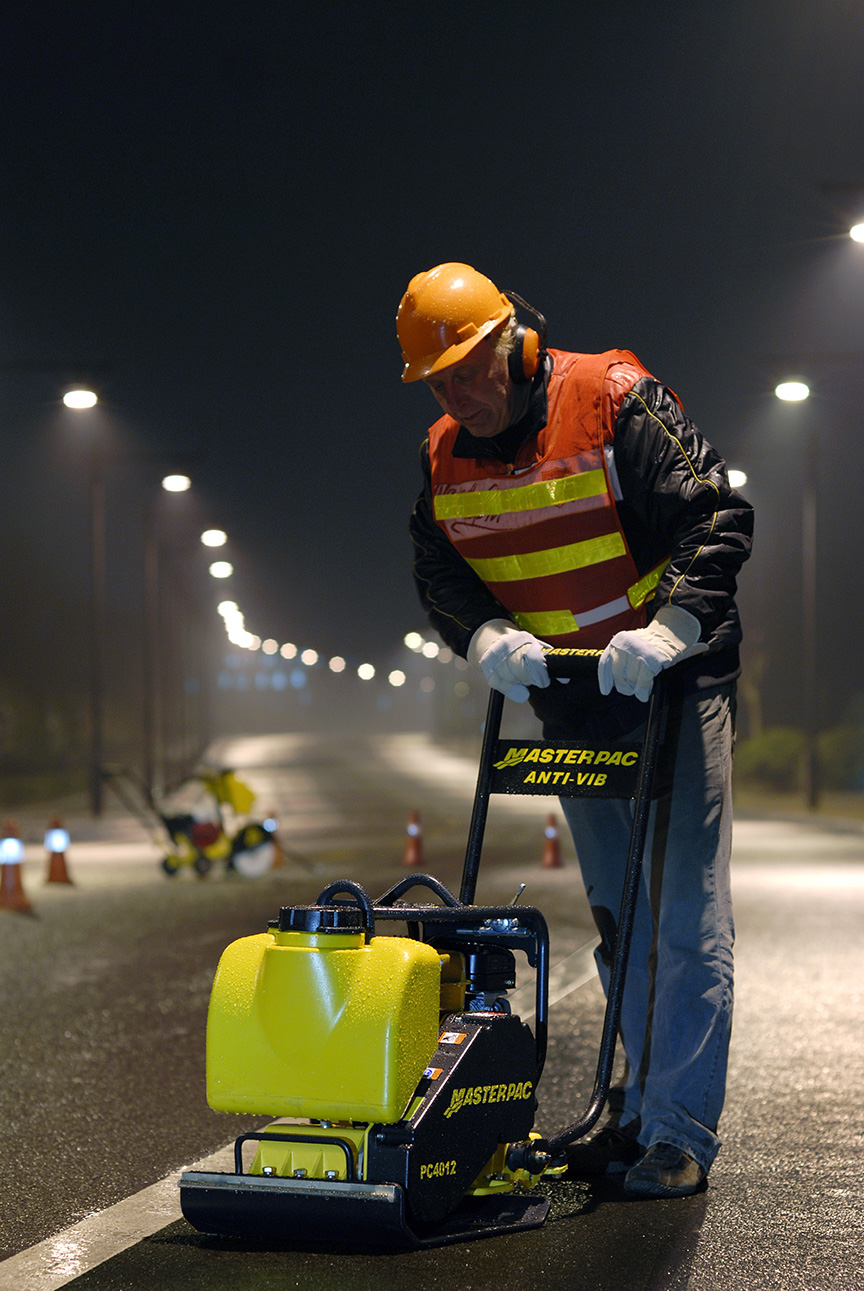

  • Optional water tank for asphalt use.
  • Optional polyerthene pad for paving applications also available.
  • Powered by gasoline as HONDA,ROBIN,and diesel as LOMBARDINI,HATZ.

Option

Masterpac PC Series Option

  • T-Water tank for asphalt compaction
  • M-Rubber mat for pavement
  • W-transport wheel for easy transport
Model PC4012H
PCV4012H 		PC4012R
PCV4012R 		PC4012L
PCV4012R 		PC4012A
PCV4012A
Engine Type Honda GX160 Robin EX17 Lombardini LD225 Hatz 1B20
Power kw(hp) 3.6(4.9) 2.9(4.0) 3.5(4.8) 3.4(4.6)
Weight kg(lb) 85(187) 85(187) 98(216) 98(216)
Plate Size L×W cm(in) 57×40(22×16) (Cast iron plate avaiable)
Centrifugal Force kN 12
Vibration Frequency vpm(Hz) 5400(90)
Travel Speed m/min(ft/min) 22(72)

* We reserve the right to improve or withdraw the specification or product without prior notice.
