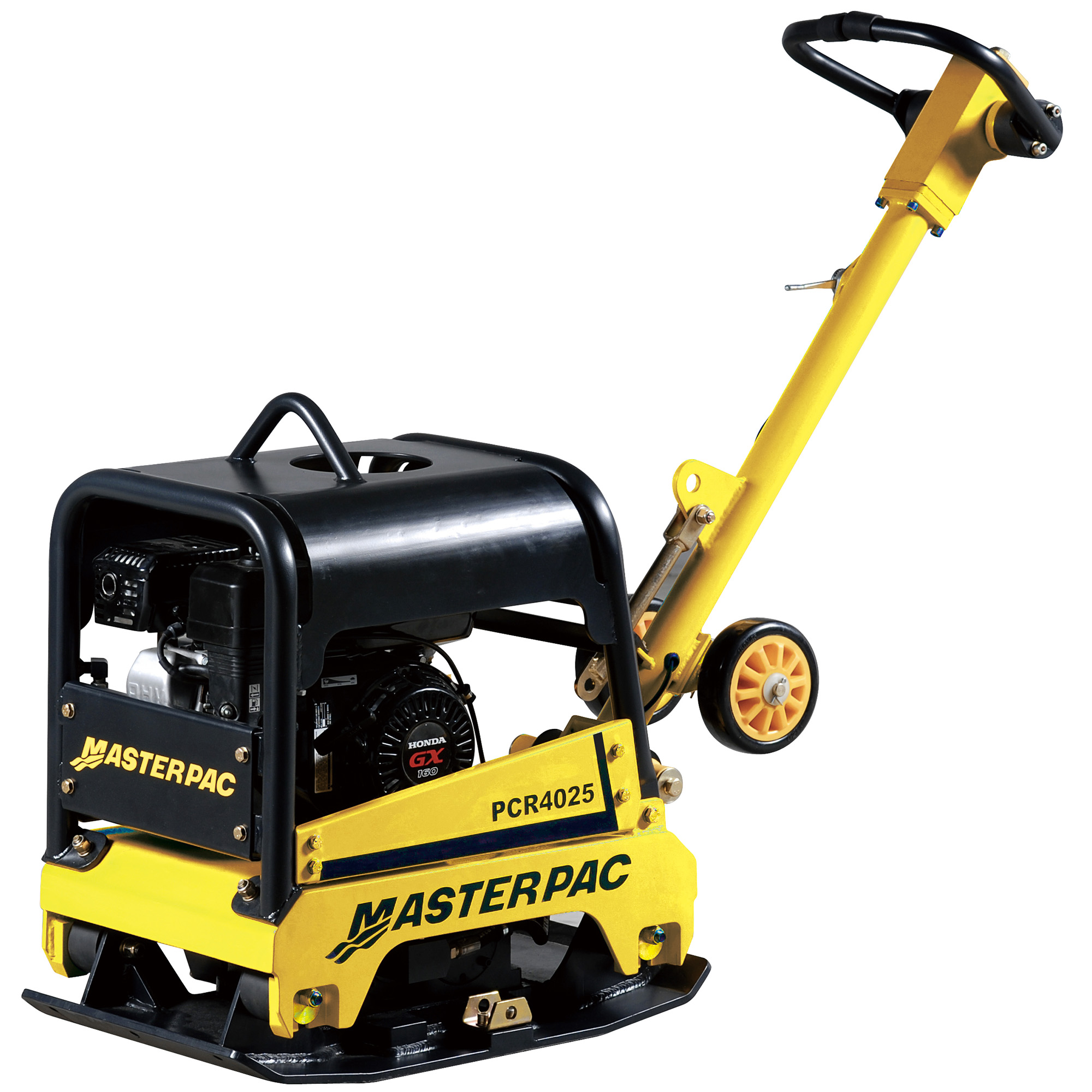

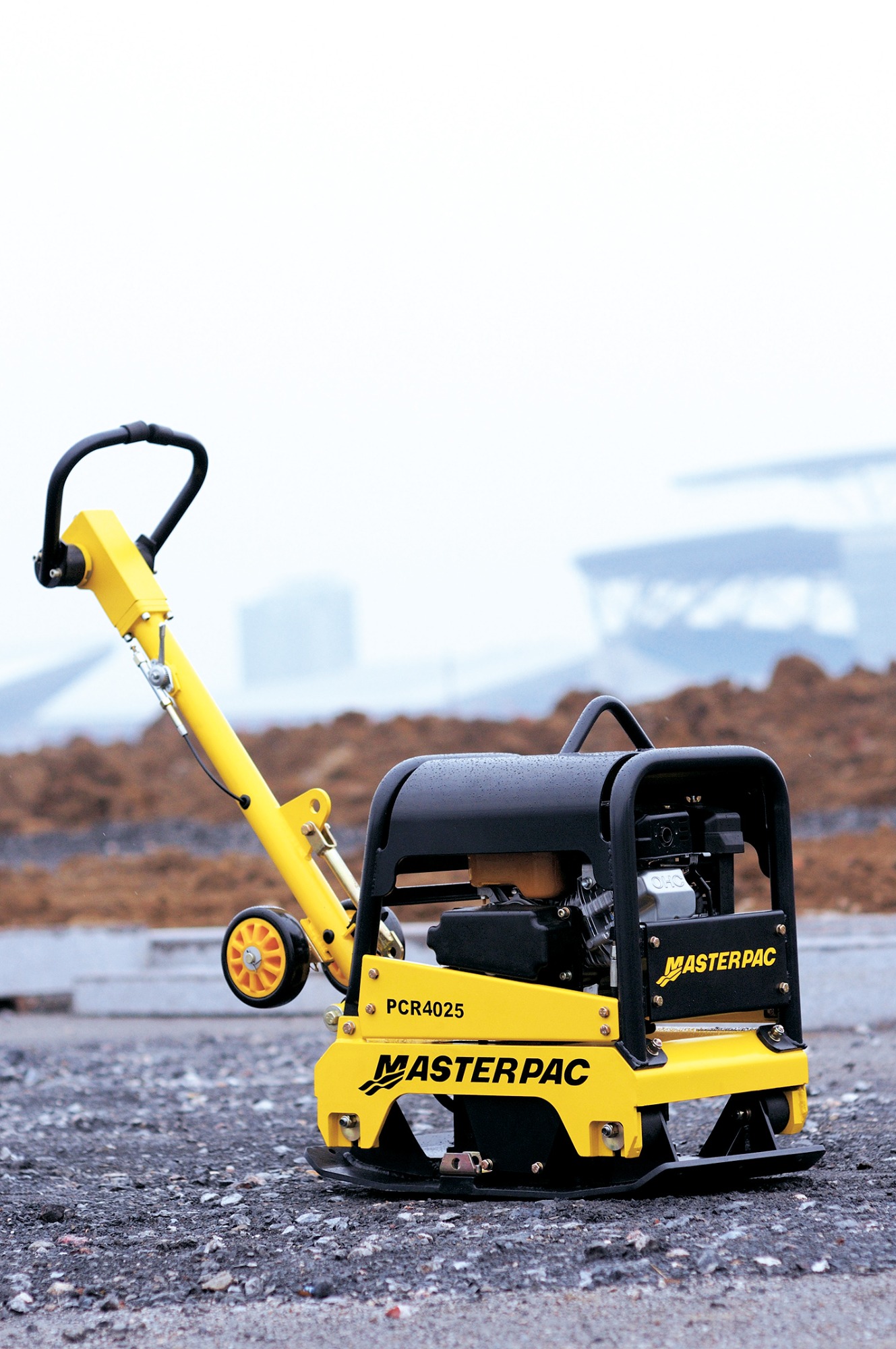

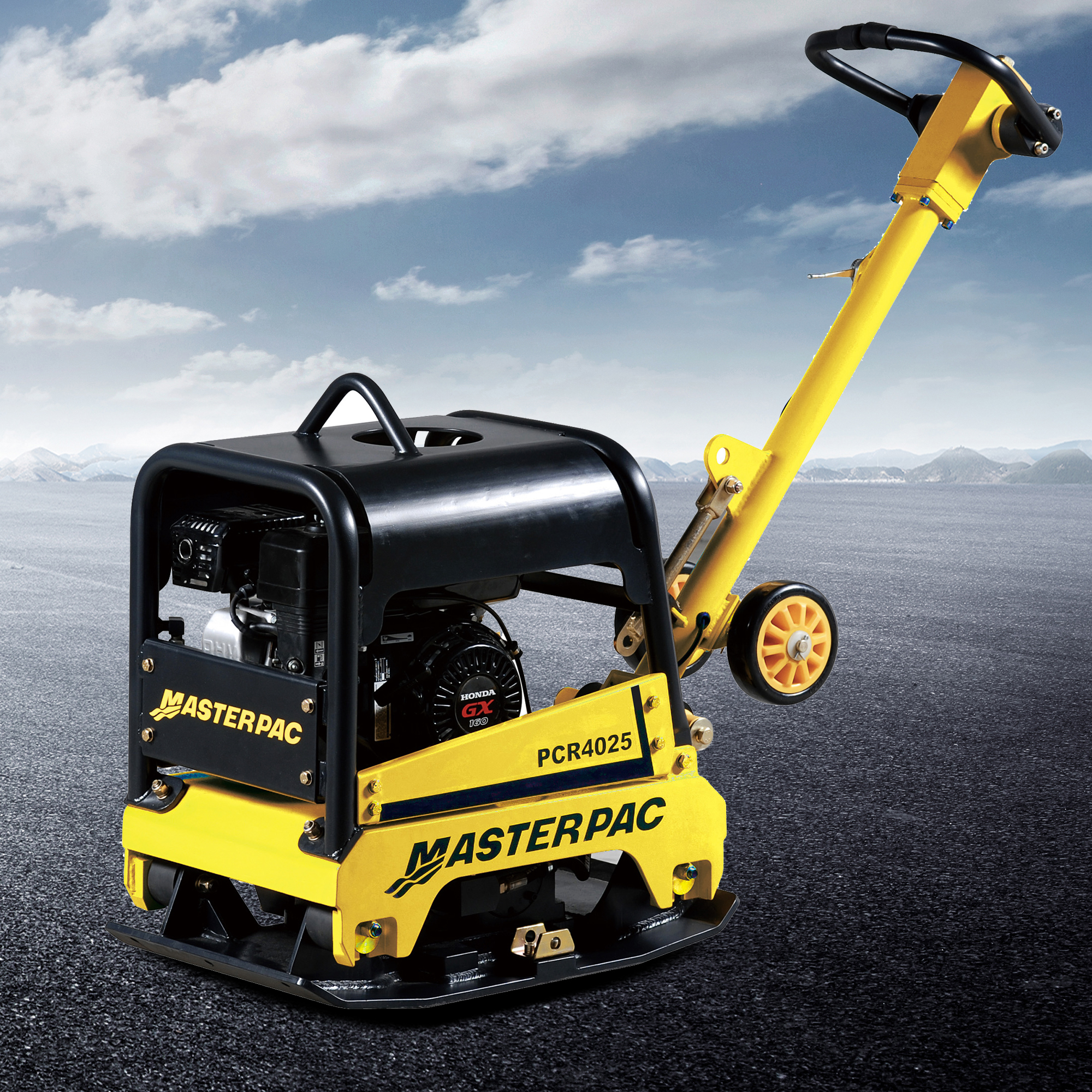

PCR4025

HYDRAULIC REVERSIBLE PLATE COMPACTOR - PCR3820/PCR4025/PCR5030 SERIES
液压可逆式平板夯 - PCR3820/PCR4025/PCR5030 系列

Reversible plate compactors are ideal and versatile for high production and efficien compaction for sand,gravel and cohesive soils.The reversible vibratory plates offer two eccentric weights which increase the compaction force while creating a smooth transition between forward and reverse travel.
可逆式平板夯是高产量、高效率压实砂土、砾石和粘性土的理想选择。可逆式振动平板夯配备两个偏心配重，可在正反转之间实现平稳过渡，同时增加压实力。

Ideally suited for confined granular and mixed soil applications such as trenches, highways,dams,parking areas,airports bridges,and construction foundations.
非常适合密闭颗粒和混合土壤应用，例如沟渠、高速公路、水坝、停车场、机场桥梁和建筑地基。

Features  特征

• Hydraulic adjustment control lever for easy direction change.
  液压调节控制杆，可轻松改变方向。
• On the spot compaction for problem areas.
  对问题区域进行现场压实。
• Infinitely variable hydrostatic forward and reverse motion.
  无级可变的静水动力正反向运动。
• Reverse travel safety protection ensures the plate automatically reverts to slow forward travel if the operator releases the travel control lever while reversing.
  反向行驶安全保护装置确保，如果操作员在倒车时松开行驶控制杆，平板会自动恢复到缓慢前进状态。
• User friendly isolated vibration handle.
  用户友好型隔离式减震手柄。
• Fully sealed lubricated wear resistant cast iron vibrator assembly.
  全密封润滑耐磨铸铁振动器组件。
• Handle folds to 45 and 90 degree position for eas ytransportationand storage.
  手柄可折叠至 45 度和 90 度位置，便于运输和存放。
• Heavy-duty roll cage with lifting eye protects against dirt and damag for easy transportation.
  重型防滚笼带有吊环，可防止灰尘和损坏，便于运输。
• Impact-resistant and open self cleaning base plate.
  耐冲击且开放式自清洁底板。
• Unique built-in transport wheels provides easy transportation.
  独特的内置运输轮使运输更加便捷。
• Convenient Oil drain hose.
  便捷的排油软管。
• Robust design sealed belt cover for clutch and belt protection.
  坚固耐用的密封式皮带罩，用于保护离合器和皮带。
• Electric starter is an option for diesel engine.
  柴油发动机可选配电启动器。
• The optional polyurethane pad for paving applications is available.
  可选配用于铺路的聚氨酯垫。

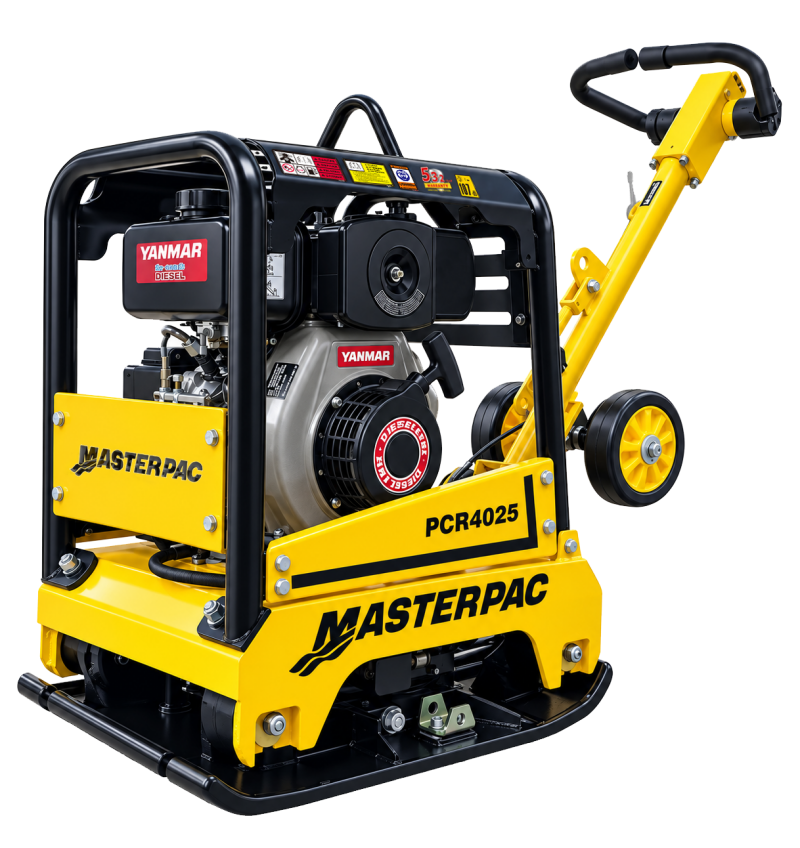

• Powered by gasoline as HONDA,ROBIN,and diesel as LOMBARDINI,HATZ.
  本田、罗宾等车型使用汽油动力，隆巴迪尼、哈茨等车型使用柴油动力。

Working Size(mm/in)  工作尺寸（毫米/英寸）

Option  选项

• M - Rubber mat for pavement
  M - 路面用橡胶垫
• W - Transport wheel for easy transport
  W - 便于运输的运输轮
• S - Electric starter  S - 电启动器
