PC88

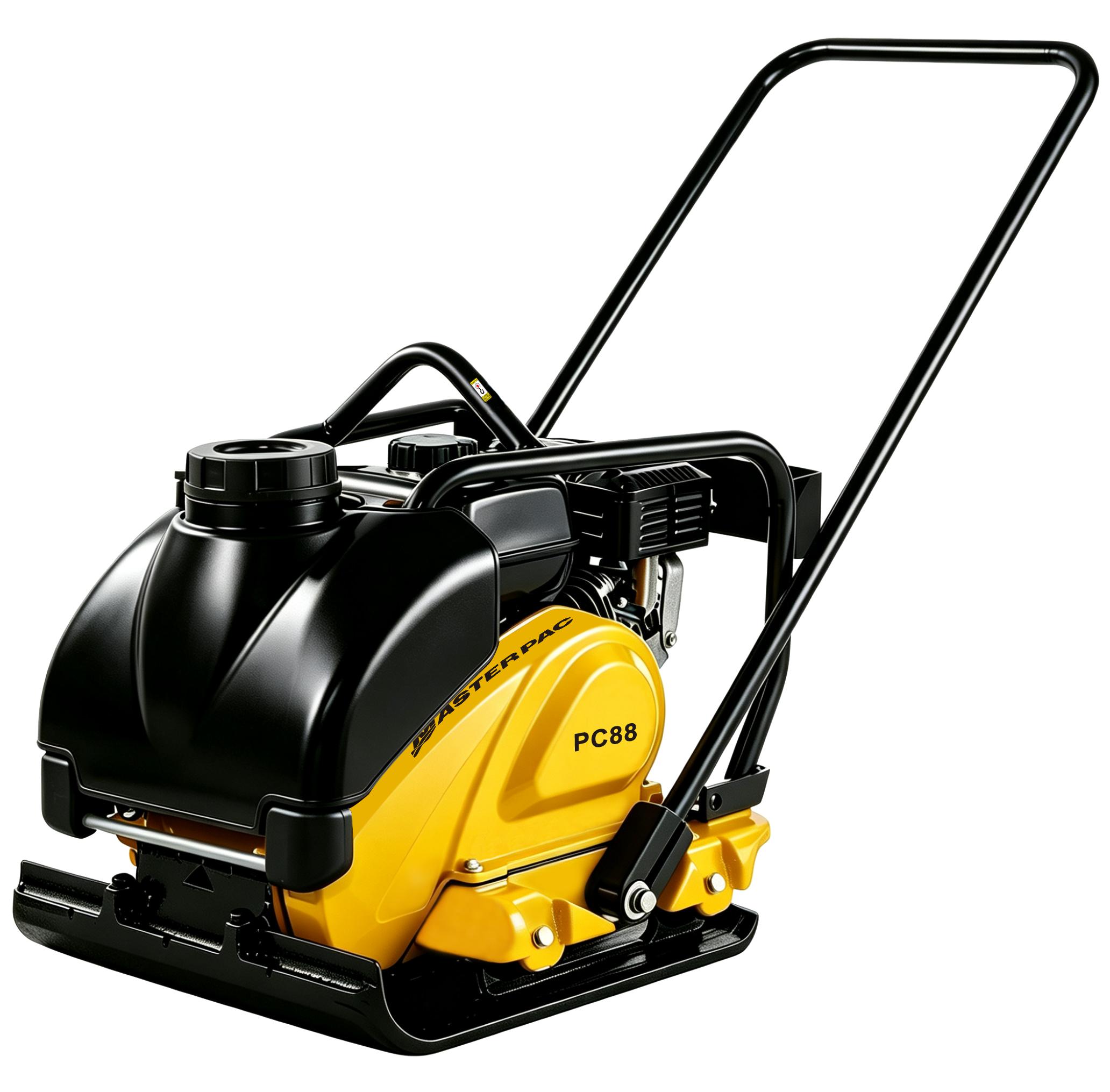

MASTERPAC PC88 Forward Plate Compactor is designed for efficient and reliable compaction of asphalt and soil. Powered by a Honda GX160 engine, it delivers 15 kN centrifugal force and 6,000 vpm for excellent compaction performance. Featuring an integrated water tank, lifting hook, sealed clutch and belt guard, and ergonomic vibration-damping handle, the PC88 offers easy operation, safe handling and dependable performance for roadwork, paving, landscaping and construction applications.

  • Model: PC88
  • Engine Type: Honda GX160
  • Power kw (hp): 3.6(4.9)
  • Weight kg (lb): 92(203)
  • Centrifugal Force (kN): 15
  • Vibration Frequency vpm (Hz): 6000(100)
  • Travel Speed m/min (ft/min): 25(82)
  • Plate Size ( LxW) mm(in): 526 x500 ( 21 x 20 )

Features:  特征:

· Heavy-duty base plate and high-quality vibration system ensure superior compaction performance for both sub-base and asphalt applications.
· 重型底板和高质量的振动系统确保了在路基和沥青应用中均具有优异的压实性能。

· High centrifugal force (15 kN) with 6,000 vpm vibration frequency provides deep compaction with fewer passes, increasing job site productivity.
· 高离心力(15 kN)和 6,000 vpm 的振动频率可实现深层压实,减少碾压次数,提高工地生产率。

· Integrated water tank system prevents asphalt from sticking to the plate, ensuring a smooth and clean finish.
· 集成式水箱系统可防止沥青粘附在平板上,确保光滑洁净的表面。

· Lifting hook and optional wheel kit enable easy and safe on-site handling and transport.
· 吊钩和可选的轮子套件使现场搬运和运输变得轻松安全。

· Ergonomically designed handle with vibration-damping rubber mounts reduces operator fatigue during extended use.
· 符合人体工程学设计的手柄,配有减震橡胶垫,可减少长时间使用过程中操作人员的疲劳。

· Easy-access controls and maintenance points simplify daily checks and service.
· 易于操作的控制和维护点简化了日常检查和服务。

Model Units  单位 PC88
Operating Weight, CECE  运行重量,CECE kg(lb)  千克(磅) 92(203)
Engine Type  发动机类型 - Honda GX160  本田 GX160
Power  力量 kw(hp)  千瓦(马力) 3.6(4.9)
Plate Size ( L X W )
餐盘尺寸(长×宽)
mm(in)  毫米(英寸) 526 x 500 ( 21 x 20 )
Centrifugal Force  离心力 kN  千牛 15
Vibration Frequency  振动频率 vpm (Hz)  每分钟频率 (Hz) 6000 (100)
Travel Speed  行驶速度 m/min (ft/min)  米/分钟(英尺/分钟) 25(82)

* We reserve the right to improve or withdraw the specification or product without prior notice.
