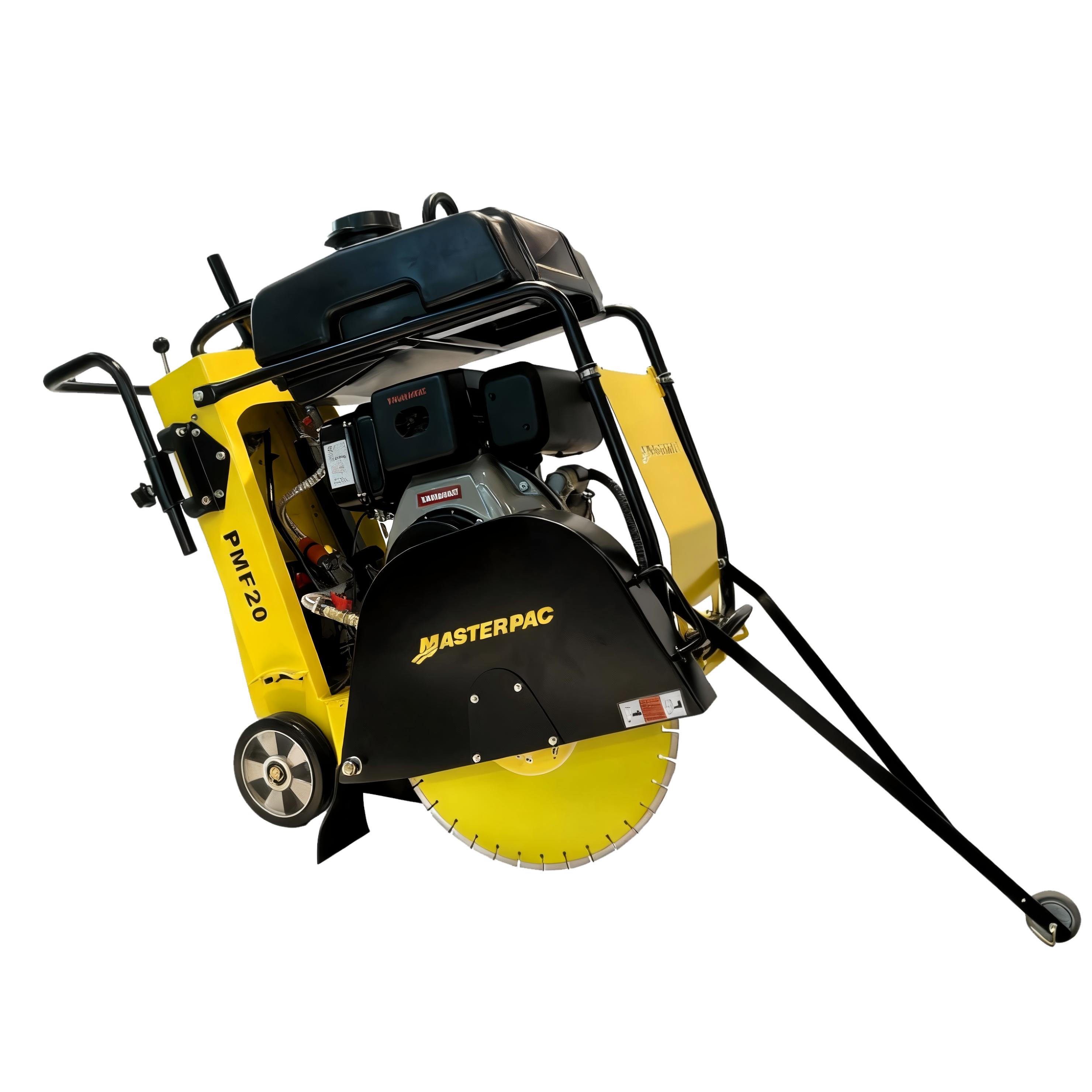

PMF20Y
The new FS400 series floor saws are true multi-purpose concrete saws, available with engine alternatives from 9 to 11 hp.
- Engine Type:: Yanmar L100N
Features:
- Yanmar L100N engine provides hassle-free operation and long-term reliable operation.
- Dual-blade flanges & reversible guard enable right and left-hand cutting.
- The brake system makes it easy to stop the saw and ensures working safety.
- Manual(recoil) and key start (battery) ensure smooth operation even with a dead battery.
- An optional hour meter is useful in planning periodic maintenance.
- Convenient wheel for raising or lowering the cutting depth.
- Up-mounted water tank makes the center of gravity above the blade shaft and therefore enhances cutting efficiency.
- The rugged adjustable pointer wheel assembly is durable and accurate, helping ensure a straight cut.
| Model | Units | PMF20Y |
| Engine Type | - | Yanmar L100N |
| Power | kw (hp) | 7.4 (10) |
| Weight | kg (lb) | 184 (405) |
| Max.Cutting Depth | mm (in) | 184 (7.2) |
| Max. Blade Dia | mm (in) | 500 (20) |
| Depth Adjustment | - | Handle Rotation |
| Driving | - | Manual Push |
| Water Tank Capacity | L (US gal) | 31 (8.2) |
| Arbor Dia / Blade Bore | mm (in) | 25.4 (1) |
* We reserve the right to improve or withdraw the specification or product without prior notice.
